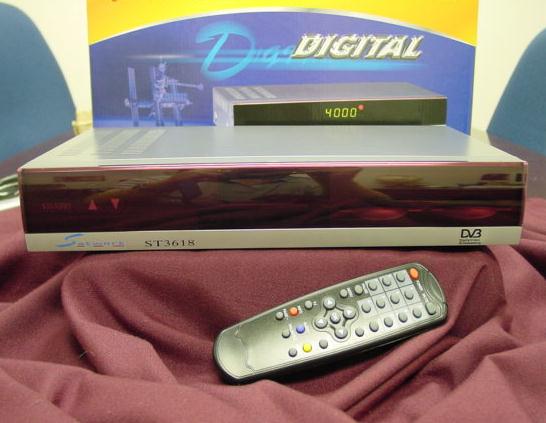

SATWORK ST3618
Features:
Blind Search
Auto Search
Easy Operation
Normal Scan
Manual Scan
Fully DVB-S / MPEG II Compliant
3000 Channels Memory Space
PAL to NTSC conversion
NTSC to PAL conversion
Favorite Groups Channel Organization
PIG Channel Selection (Picture In Graphic)
SCPC & MCPC receivable from C/Ku
256 Colors on Screen Display (OSD)
DiSEqC 1.0, Voltage (14/18V), Tone (22K) and 0/12V LNB switching support
Multi-language OSD (English, German, Italian, Spanish, French,
Turkish, Arabic, Persian, Greek, Portuguese, Russian)
VBI Teletext Support
RF Modulator
Game
Easy Software Upgrade by: PC to STB, STB to PC, STB to STB
Specs:
IF input frequency 950~2150MHz
Input impedance 75
LNB power supply 13/18V/OFF, Max. 400mA
Input level -65dBm ~ -25dBm
Waveform QPSK
Symbol rate 2~45MS/s
Roll off factor 0.35
Reed Solomon decoder RS(204, 188,8)
Viterbi decode rate 1/2, 2/3, 3/4, 7/8, auto
Connector type "F" connector
Sampling frequency 32,44.1 or 48 KHz
Demultiplex CD ISO/IEC 13818-1
Input max. bit rate 60Mbps(serial)/7.5Mbps(parallel)
Standard CD ISO/IEC 13818-2, MPEG-2 MP@ML
Video aspect ratio 4:3 or 16:9
Resolution Max. 720 x 576
Standard ISO/IEC 13818-3 Layer I & II
Audio Channel Mono, Dual-channel, Stereo, Joint Stereo
Sampling frequency 32, 44.1, 48 KHz
CPU STMicroelectronics STi5518
Clock frequency 81MHz
SDRAM memory 8M bytes
Flash memory 1M bytes

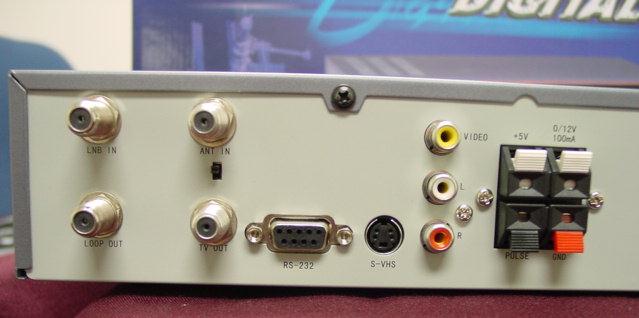

Connector 9-pin D type, female
Protocol RS-232 asynchronous
Baud rate Maximum of 625K bps
Video de-emphasis CCIR REC.405-1, 625 lines
Video bandwidth 5.5 MHz
Video output level 1.0 Vp-p
