Key Digital Systems

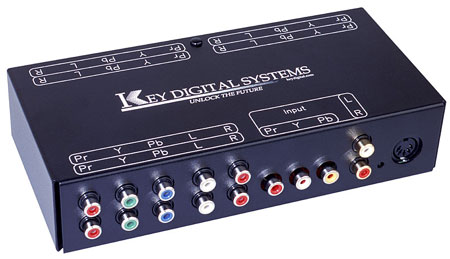

Model Number: KD-DA6

6 Channel Component Video Distribution Amplifier



KEY FEATURES:
• Enables signal distribution from any HDTV or SDTV
Component Video source to Component Video HDTV ready monitors.
• KD-DA6, can drive 6 monitors.
• Component Video and Left, Right; Digital PCM audio
can be used instead of Left, Right.
• RCA connectors for all video and audio inputs and outputs.
• 120MHz bandwidth.

KEY BENEFITS:
• Drives cable up to 300 feet.
• Can be cascaded to other KD-DA6 or KD-DA12 to drive
as many outputs as desired from one source.
• External power supply.
• Crystal clear image.
• Metal Enclosure.
• Cost effective.
• 2 years parts and labor warranty.


TECHNICAL SPECIFICATIONS:
Input:
• One group of five RCA connectors consist of
independent HDTV/SDTV Component Video (YPrPb) plus two channels audio L&R.

Video:
• Standard YPrPb (YCrCb) 1 volt p-p 75 Ohm terminated Component Video.
Video bandwidth: -3 Db @ 120 MHz.

Audio:
• Standard "line" type high impedance two-channel L,R.
• Each L or R could be used for PCM digital audio.
• Audio bandwidth: flat 20 Hz to 50 MHz.

Outputs:
• Six groups of five RCA connectors each. Each group
consist of independent HDTV/SDTV Component Video
(YPrPb) plus two channels audio L&R.

Cable Recommendation:
• Use bundles of Key Digital’s Dig/Analog coax five
channel RCA-RCA type Cable for video and audio.
• Each run of YPrPb cable MUST be the same length(300’max).


• Size: 4" x 8" x 1-13/16".
• Weight: 3 lbs

• Power: +/- 5V DC. 110-120 VAC, 60 Hz (7 watts).
(No other power supply could be used with this unit)

Orientation/Mounting Information:
• Cable attaches to all 4 sides of the unit.
• The top and bottom of the unit are solid metal (no vents).
• The unit may be oriented horizontally, or mounted vertically on a wall.
Use 2 # 8 or M4 screws to hang the unit (keyhole slots
are provided on the base of the unit).
• If installing into sheet rock or hollow walls, provide
proper screw support with bolts or sheet rock anchors.

Warranty:
• 2 years parts and labor

 Key Digital Systems Wins
Five Innovations Awards at
2002 CES.

Price: $499.99
